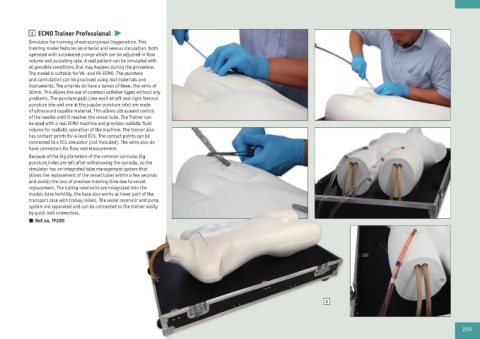

1 ECMO Trainer Professional
Simulator for training of extracorporeal Oxygenation. This
training model features an arterial and venous circulation, both
operated with automated pumps which can be adjusted in flow
volume and pulsating rate. A real patient can be simulated with
all possible conditions that may happen during the procedure.
The model is suitable for VA- and VV-ECMO. The puncture
and cannulation can be practiced using real materials and
instruments. The arteries do have a lumen of 8mm, the veins of
10mm. This allows the use of common catheter types without any
problems. The puncture pads (one each at left and right femoral
puncture site and one at the jugular puncture site) are made
of ultrasound capable material. This allows ultrasound control
of the needle until it reaches the vessel tube. The Trainer can
be used with a real ECMO machine and provides realistic fluid
volume for realistic operation of the machine. The trainer also
has contact points for 4-lead ECG. The contact points can be
connected to a ECG simulator (not included). The veins also do
have connectors for flow rate measurement.
Because of the big diameters of the common cannulas big
puncture holes are left after withdrawing the cannula, so the
simulator has an integrated tube management system that
allows the replacement of the vessel tubes within a few seconds
and avoids the loss of precious training time due to vessel
replacement. The tubing reservoirs are integrated into the
models base invisibly, the base also works as lower part of the
transport case with trolley rollers. The water reservoir and pump
system are separated and can be connected to the trainer easily
by quick lock connectors.
n Ref.no. TF200
